TRACTORS TECHNICAL SPECIFICATION

4WD

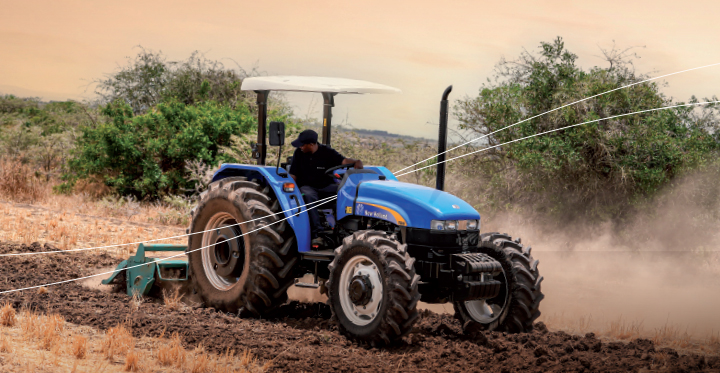

720X373 TD
Engine
Power measured
2000 rpm
Pto Power KW/HP
58.8/80
Axles
Front axle
4WD
Linkage
Maximum lift capacity at ball ends with arms horizontal
3565 kg
Continous lift capacity through the range (610mm behind bar ends)
2700 kg
Dimensions
Overall length
3865 mm
Overall width
1808 mm
Height at centre of rear axle to top of ROPS
1788 mm
Total height with ROPS
2488 mm
Wheelbase
2192 mm
Track Width (Front)
1560-2000 mm
Track width (Rear)
1400-2000 mm
Ground clearance (front axle lowest point)
390 mm

Gallery

NH TD80 New Holland Kenya
NH TD80 New Holland Kenya
NH TD80 New Holland Kenya

Engineered to let you work effectively and effortlessly.

Delivering smooth performance, effortless control, and unmatched transmission versatility for every farming application.

Request a Quote
NH TD80

The New Holland TD80 is built to help farmers work smarter, not harder. Equipped with a proven 12x12 Synchro Shuttle™ transmission and optional 12x4 Synchro Command™ or 20x12 Creeper configurations, the TD80 adapts easily to various farming demands—from precision planting to rugged tillage. Its ergonomic controls, helical gear design, and left-hand shuttle lever ensure seamless direction changes and quieter operation—perfect for tasks like front loader work. Under the hood, an independent PTO driveline provides direct power from the engine to your implements, delivering efficient performance with minimal power loss. Multiple PTO speed options—including 540/540E and 540/1000 with ground speed—let you match output to any job. Built with high-quality clutches and durable transmission components, the TD80 is designed for long-lasting performance in even the toughest conditions.
